DataGate Printer Files: An Introduction

Estimated reading time: 8 minutes

This document discusses the general concepts and some implementation details of DataGate Printer Files.

DataGate features Printer Files as multiple formatted files. Each format of a Printer File describes a portion of a page. When a report is to be made, writing these records causes a Renderer to ‘paint’ sections of each page on the report.

A Printer File is composed of one or more record formats, each defining a template of what is to be shown in a segment of the page. A record format is a collection of Fields and other Controls. Fields and Controls are actual .NET Framework¹ Windows Forms Controls.

DataGate provides the following controls:

• Data Fields:
  • CharField - Defines and prints a fixed length character field.
  • DecField - Defines and prints a fixed length Binary, Packed or Zoned decimal field.
  • DateTimeField - Defines and prints a Date, Time or Timestamp field.
• AutoField - Prints an Attribute of the report: Computer Name, Page Number or Count, Creation date/time, Process date/time.
• Label - Prints a Constant character string.
• Line - Prints a straight Line.
• Shape - Prints a Rectangle, Square, Oval or Circle.

In addition to the controls provided by DataGate it is theoretically possible to add to a record format any arbitrary .NET Framework Control, however, in practice only a few of them make sense to include on a printer file, most notably a Windows.Forms.PictureBox.

The next image shows a Printer File with four record formats being edited in Visual Studio. Figure 1: DG Printer File in Visual Studio

Some of the attributes of Printer Files are:

• XML representation of the file definition.
• Conditional attributes at the file, format and field level with the ability to provide an array of Booleans to programmatically control certain properties.
• Capability to direct the output to a text file (a Manuscript) where the data is formatted in XML instead of being printed.
• Capability to provide alternate rendering engines to print without the use of the .NET Framework controls.

The following diagram shows the processes of editing, printing and rendering Printer Files and their output.

Figure 2: DG Printer File — Edit, Print, Render

Creating and Editing a Printer File Definition

DataGate provides a dedicated editor—the DataGate Printer File Designer—to create and modify Printer Files. The designer runs inside Visual Studio and behaves much like a standard forms designer. Developers can create new Printer Files, define record formats, and add fields using the tool palette. The palette includes both DataGate‑provided controls and any compatible third‑party controls installed on the machine.

Figure 3: Editing a Printer File with DataGate Designer

Alternatively, developers can request the Printer File’s XML definition directly from DataGate, modify it using standard XML tooling, and then create a new Printer File from the updated XML.

DataGate Studio in Visual Studio

Visual Studio is a native Windows application built partly on the .NET Framework and supports extensibility through .NET Framework–based extensions. ASNA provides one such extension: DataGate Studio (DG Studio). DG Studio enables developers to create, inspect, and manage DataGate objects—including Printer Files.

DG Studio is a client‑side tool that communicates with a DataGate database server. In the .NET Framework version of DataGate, server connection information is stored in objects called Database Names. A Database Name encapsulates all the information required for a DG client to locate and authenticate with a server.

A Database Name includes attributes such as:

• Location of the server
• Database within the server
• Credentials to access the Database
• Initial Library List

Although the term is a bit redundant, a Database Name also has a Name—this serves as the identifier used by clients to reference the stored connection information.

DG Studio extends Visual Studio with several windows and tools. Two of the most commonly used are the DataGate Explorer, where Database Names and connections are managed, and the Printer File Designer, shown below.

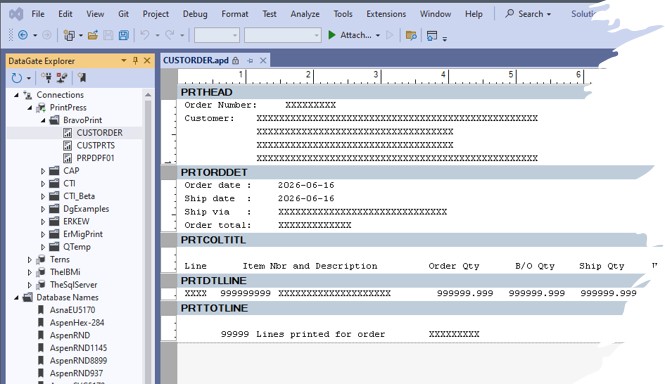

Figure 4: DataGate Explorer and Printer File Designer

In DataGate for .NET (Core), the equivalent of Database Names is called Database Sources. These are typically stored in the asnasettings.json file located in the user’s profile at:

%LocalAppData%\ASNA\DataGate

(e.g., C:\Users\<user>\AppData\Local\ASNA\DataGate on Windows).

While Database Sources in asnasettings.json are stored in clear text, DataGate for .NET Framework stores Database Names in an encrypted file named DatabaseNames.config, also located under %LocalAppData%\ASNA\DataGate. The .NET Framework version also supports public Database Names, stored in:

%ProgramData%\ASNA\DataGate

(e.g., C:\ProgramData\ASNA\DataGate).

For more information, see:

• Introducing DataGate Print File Designer
  https://docs.asna.com/documentation/Help180/PFD/_HTML/Welcome.htm
• Creating and Opening Database Connections
  https://docs.asna.com/documentation/Help180/DGStudio/_HTML/dgCreatingNewConnection.htm

A Note on Moving the DatabaseNames.config File

DatabaseNames.config files are encrypted.

• User‑specific Database Names are encrypted using the user profile key.
• Public Database Names are encrypted using the machine key.

These files can become unreadable if the associated key changes—for example, when a user profile is recreated or when a virtual machine is moved to a different host.

To safely copy or move Database Names, export them using DG Explorer rather than copying the config file directly.

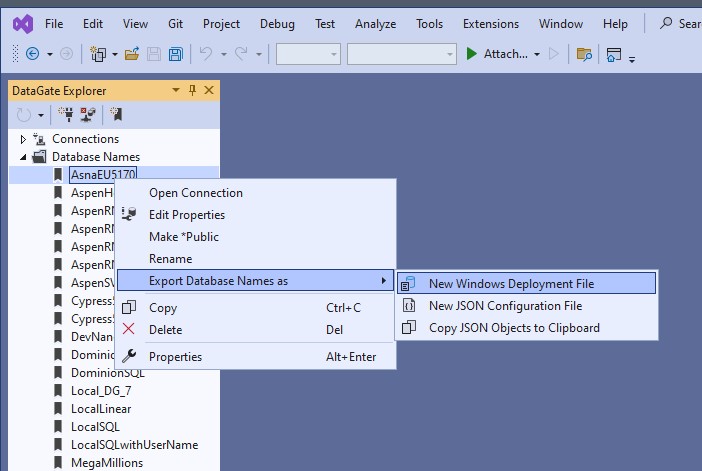

Figure 5: Exporting a Database Name

The export option displays a dialog where you can choose a destination file and specify a password to protect the exported Database Names.

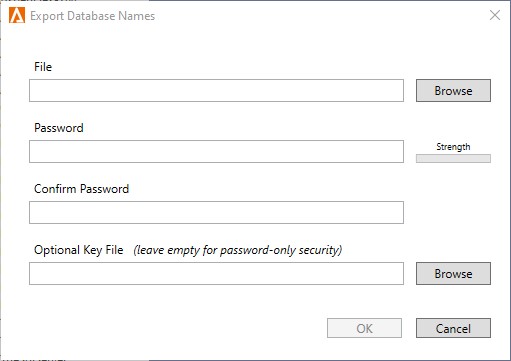

Figure 6: Export Database Name Dialog

Keeping a copy of the exported Database Names is a good precaution in case of the DatabaseNames.config file become unreadable.

Printing

To create a report, a user program issues operations against the Printer File. After connecting to the database, the program opens the Printer File and as the program executes, multiple write operations against different record formats are made; additionally, the controls property values might be modify as part of the execution. The write operations cause DataGate to record the values of fields and properties in a manuscript.

The manuscript is an XML document composed of four sections:

1. Schema
2. References
3. Initial property values
4. Document pages

The Schema defines the record formats and control fields found in the document pages. The References lists the .NET Assembly details of the Controls used in the Printer File. The third section lists the initial values of the properties of all controls, these values are equivalent to the design-time settings selected when the file was created. Finally the actual data generated by the user program is recorded as a group of pages in the last section. Each page is composed of one or more sections, corresponding to the record formats written, defining areas of the page to be printed.

When the Printer File is open, it is possible to provide an actual location to store the manuscript, if no location is provided then it is left to DataGate to determine a temporary disk location for the manuscript.

Rendering

The final phase in the process of creating a report is the rendering of the manuscript. A renderer sends the formatted contents of a manuscript to a printer or a PDF file. DataGate provides a default renderer program (Renderer.exe) which yields a printout produced to a Windows installed printer. The Renderer can be executed automatically when a Printer File is closed or be invoked by an operator or application. There are command options that can be set to control certain aspects of the rendering operation when Renderer.exe is executed from the Command Line.

ASNA provides three Renderers:

1. DataGate Renderer
2. ASNA.QSys.Renderer.WindowsOnly
3. ASNA.QSys.Renderer.PDFOnly

The first two renderers depend on the Windows operating system as they direct their output to an Windows printer device, the printer can be a ‘physical’ printer or the Microsoft Print to PDF  ‘printer’. Both of them are .NET Framework executables.

The third renderer, ASNA.QSys.Renderer.PDFOnly, creates a PDF document and is independent of the Windows OS. ASNA.QSys.Renderer.PDFOnly is a .NET (Core) executable.

As a convenience for deployment, ASNA provides a front-end program called ASNA.QSys.Renderer which will invoke one of the two ASNA.QSys.Renderers depending on the operating system where it is being executed.

Alternate Manuscript Uses

Having the manuscript formatted as an XML document makes it easy to create custom ‘renderers’ which can process the manuscript in arbitrary ways. For instance a custom program can use the manuscript as input to a process that ‘grabs’ the data from the report much like a traditional report ‘scraper’ would.
